．The massive bed is a box type construction combined with extra wide bed ways, providing increased rigidity and stability.
．Bed ways are hardened and precision ground to achieve excellent wear-resistance without deformation.
．Highly smooth conventional lathe with the optimal.
．Integrates quality features the give you speed, precision and dependable performance year after year.
．Big-capacity series that is suitable for machining large workpiece.
．18-Steps spindle speed.
INVERTER COMTROLLED TYPE
．Better performance than conventional lathes.
．3-step speeds, each in variable speed change.
．Speed change by auto shifting.
．More convenient turning processing control & spindle speed shown on rpm meter.
．Braking controlled by quick inverter stop.
．Through cross feeding at fixed spindle speed, you´ll get the fine accuracy & speed for slide face of round plate (similar to CSS function).
．Through cross feeding for step turning, the spindle speed change can match and achieve rapid effect.
|
Description\MODEL |
Unit |

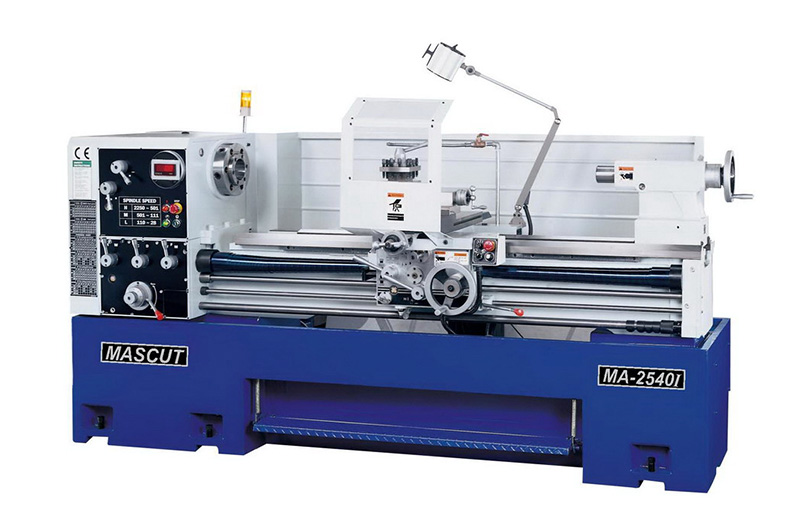

MA-2540(i) |
MA-2560(i) |

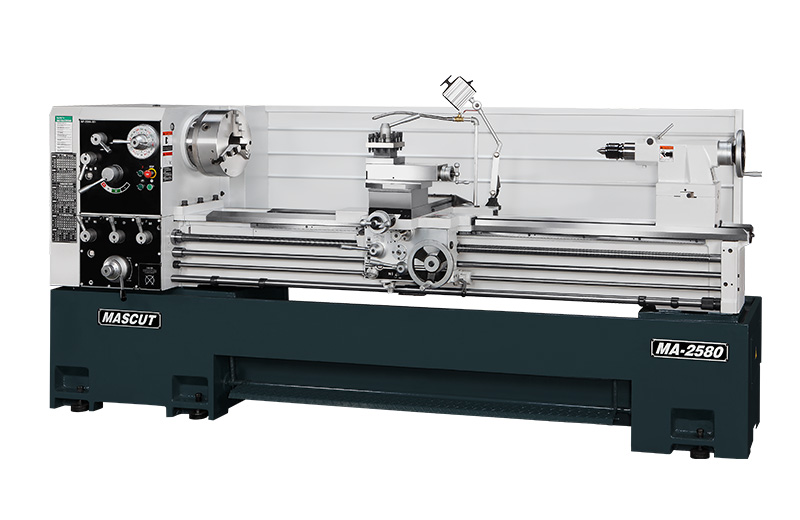

MA-2580(i) |

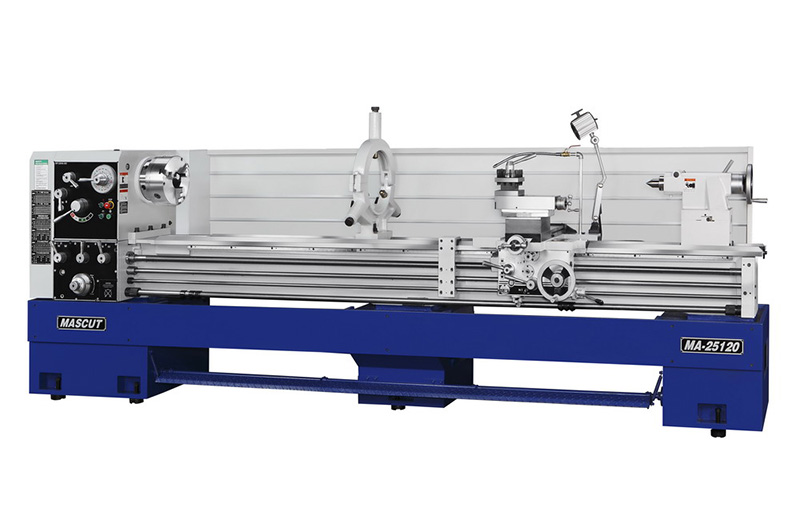

MA-25120(i) |
||
|
CAPACITY |
|
||||||
|
Swing over bed |
mm |
630 |
|||||
|
Swing over gap |
mm |
810 (opt.) |
|||||
|
Swing over cross slide |
mm |
450 |
|||||
|
Distance between center |
mm |
1000 |
1500 |
2000 |
3000 |
||
|
Bed width |
mm |
350 |
|||||
|
SPINDLE |
|
||||||
|
Spindle bore |
mm |
Ø85 (3”) |
Ø105 (4”)opt. |
Ø155 (6”) opt. |
|||
|
Spindle nose |
- |
D1-8 |
A1-11 |
A2-11 |
|||
|
Spindle speeds (18 steps) |
rpm |
25~1545 |
23~1293 |
13~690 |
|||
|
Inverter type (variable 3 steps) |
27~2250 |
20~1500 |
10~800 |
||||
|
TRAVEL |
|
||||||
|
Gross slide travel |
mm |
330 |
|||||
|
Compound rest travel |
mm |
130 |
|||||
|
TAILSTOCK |
|
||||||
|
Tailstock spindle dia. |
mm |
75 |
|||||
|
Tailstock spindle taper |
- |
MT#5 |
|||||
|
MOTOR |
|
||||||
|
Main spindle motor |
HP |
10 / 15 (opt.) |
|||||
Note : We have the right to modify the specification or designs. If there are subjected to change without prior notice.
|
STANDARD ACCESSORIES |
|
OPTIONAL ACCESSORIES |
|
l Main drive motor |
l CE conformity |
|
|
l Coolant equipment |
l Electromagnetic brakes |
|
|
l 4-way tool post |
l Gap bed |
|
|
l Tail stock |
l Z-axis rapid travel |
|
|
l Center sleeve |
l 3-Jaw scroll chuck |
|
|
l Dead center |
l 4-jaw independent chuck |
|
|
l Tool box & tools |
l Double chuck (for 4”,6” spindle bore) |
|
|
l Operation & Service Manual |
l Face plate |
|
|
|
l Work light |
|
|
|
l Quick change tool post |
|
|
|
l Steady rest |
|
|
|
l Follow rest |
|
|
|
l Taper attachment |
|
|
|
l Micro-meter bed stopper |
|
|
|
l Turret type 5-position bed stopper |
|
|
|
l Digital Readout System |
|
|
|
l Full length splash guard |
|
|
|
l Chuck guard |
|
|
|
l Chip and coolant shield |
|
|
|
l Leadscrew guard |
|
|
|
l Rotating center |
